Vinidex Rural Poly Pipe

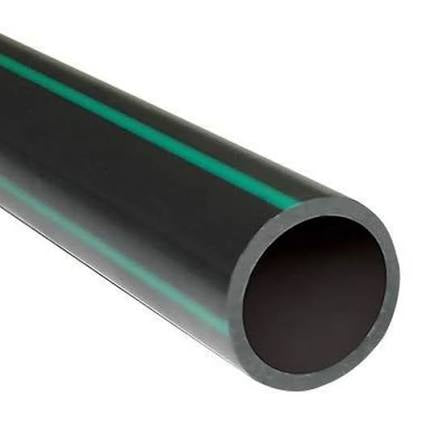

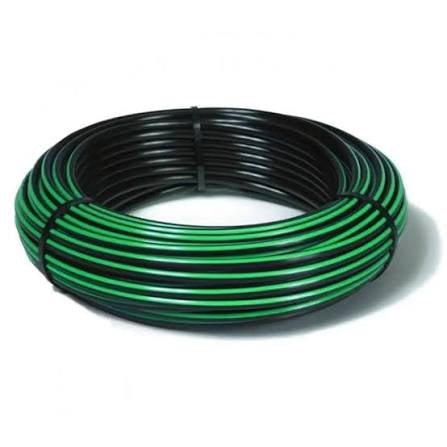

Vinidex Rural Plus® Poly Pipe is a premium PE100 polyethylene pipe designed for stock water systems, irrigation, water transfer and general rural water applications. Easily identified by its green stripes, Rural Plus® pipe offers excellent flexibility, durability, UV resistance and long service life in Australian conditions. It is compatible with standard rural compression fittings and provides a smooth internal bore for efficient water flow.
Pressure Rating: PN8 (800kPa at 20°C)
Available Sizes: ¾" (19mm), 1" (25mm), 1¼" (32mm), 1½" (40mm) and 2" (50mm).
Size Guide & Typical Flow Rates*
| Pipe Size | Inside Diameter | Recommended Flow Range |
|---|---|---|
| 3/4" (19mm) | 19.0mm | Up to 35 L/min |
| 1" (25mm) | 25.3mm | Up to 65 L/min |
| 1¼" (32mm) | 31.6mm | Up to 110 L/min |
| 1½" (40mm) | 38.0mm | Up to 180 L/min |
| 2" (50mm) | 50.8mm | Up to 300 L/min |
*Flow rates are intended as practical design guides and will vary depending on pipe length, pressure, elevation, fittings and system design.
