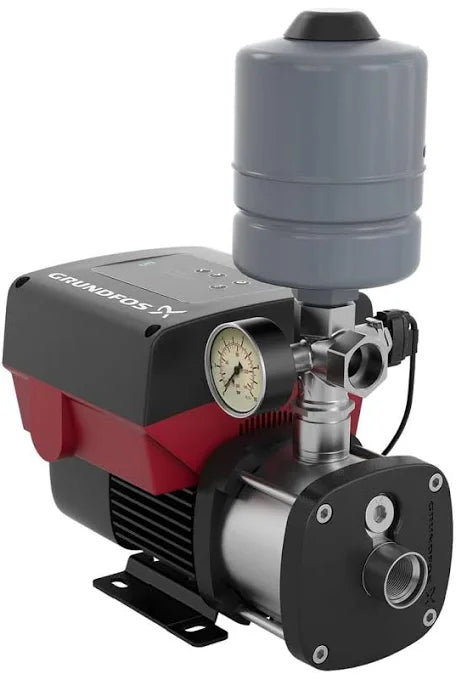

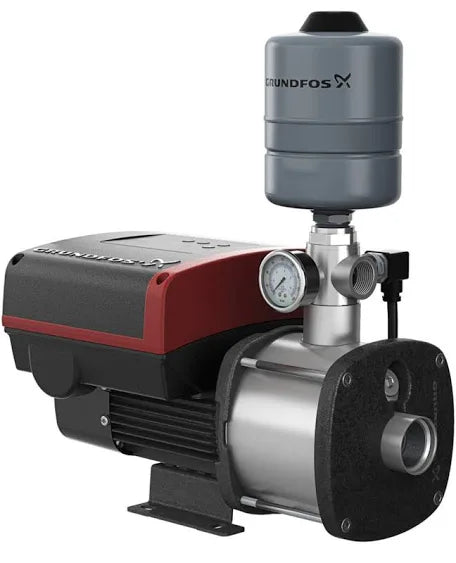

Grundfos CMBE Pressure Booster Systems
These prices include the pump with integrated variable-speed drive, 2-litre pressure vessel, pressure sensor, pressure gauge, non-return valve and 1.5 m power cable
The Grundfos CMBE is a premium variable speed pressure boosting system designed to deliver constant water pressure for domestic, rural, agricultural and light commercial applications. Featuring an integrated variable speed drive, pressure sensor and intelligent controller, the CMBE automatically adjusts pump speed to match water demand, ensuring consistent pressure while reducing energy consumption.
Built around the proven Grundfos CME pump platform, the CMBE system comes pre-assembled with a pressure tank, pressure sensor, non-return valve and integrated controller, providing a complete pressure boosting solution. Its stainless steel construction, quiet operation and advanced protection features make it ideal for larger homes, lifestyle properties, irrigation systems and commercial water supply applications.
Key Features
✔ Constant Pressure Technology
✔ Variable Speed Drive (VSD)
✔ Energy Efficient Operation
✔ Quiet Running
✔ Stainless Steel Construction
✔ Dry-Run Protection
✔ Integrated Pressure Tank & Controller
✔ Pressure Sensor Included
✔ Grundfos GO App Connectivity
Grundfos CMBE — Flow and Head Guide
Performance disclaimer: Figures are approximate readings from the blue curves in the Grundfos price book, page 1.8. The higher-flow point is where the published curve ends, not a minimum operating head. Maximum head shown is the shut-off head at zero flow; the pump must not run continuously against a closed outlet. Actual performance varies with pump speed, inlet conditions, elevation, pipework, fittings, valves and installation. Figures are a guide only. Confirm the required flow and total dynamic head before ordering.
| Model | Power supply | Head at higher-flow point | Flow at that head | Maximum head shown — shut-off | Flow at shut-off |
|---|---|---|---|---|---|
| CMBE 1-44 | 240V Single Phase | ≈20 m | ≈48 L/min | ≈48 m | 0 L/min |
| CMBE 3-62 | 240V Single Phase | ≈30 m | ≈93 L/min | ≈66 m | 0 L/min |
| CMBE 5-62 | 240V Single Phase | ≈33 m | ≈130 L/min | ≈69 m | 0 L/min |
≈ means approximately. Maximum flow and maximum head cannot be delivered together.
