Mono Sun-Sub Solar Pump

Mono Sun-Sub Solar Pump System

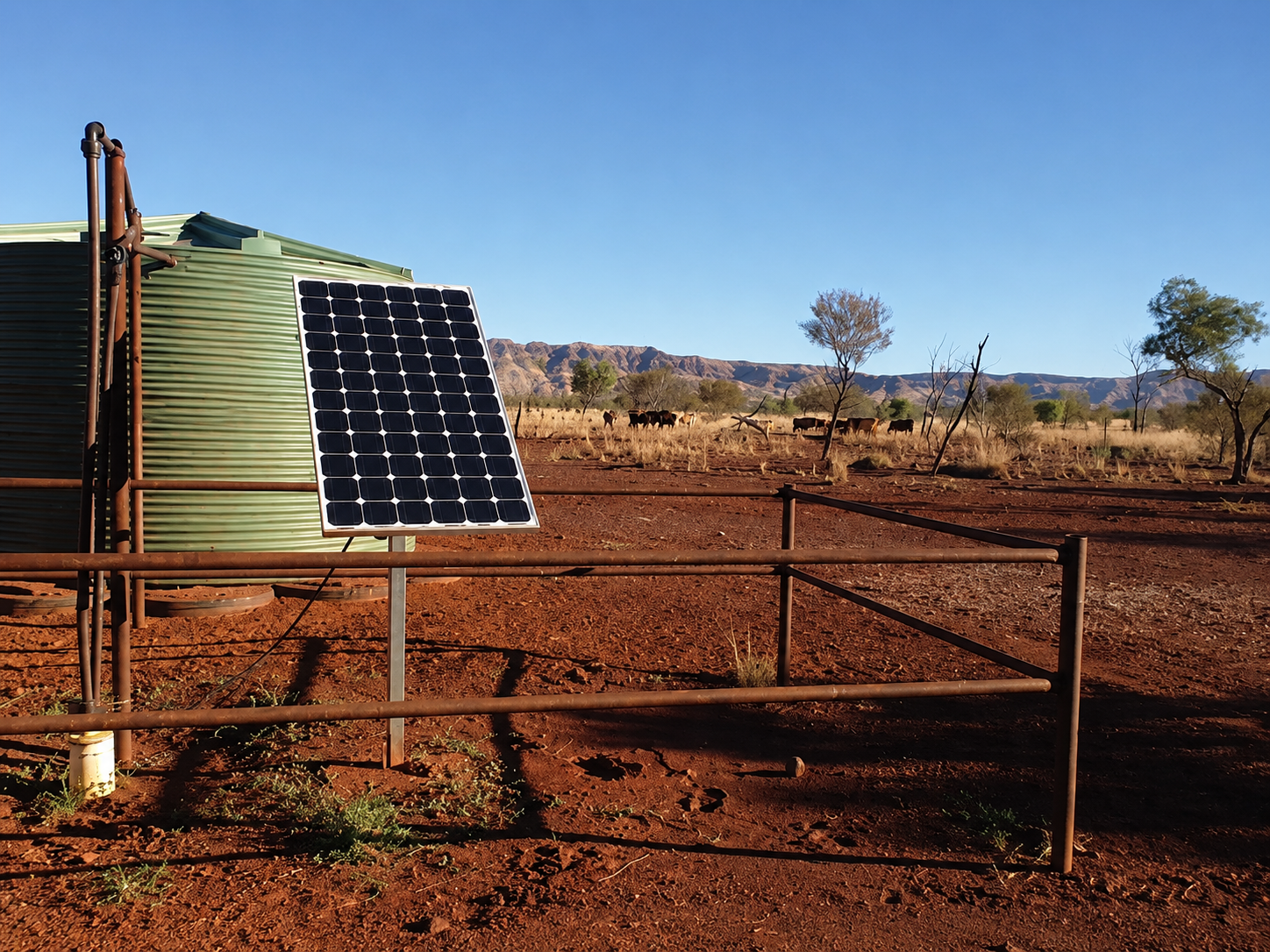

The Mono Sun-Sub Solar Pump System is a reliable solar-powered submersible pump designed for off-grid water supply, bore pumping, stock watering, tank filling, dams, wells and remote rural water systems.

The Sun-Sub draws its power from solar panels, helping remove the need for mains power or diesel fuel. It is well suited to farms, rural properties, bore systems, trough lines and remote water supply jobs where reliable water transfer is needed.

Mono Sun-Sub systems are commonly used for:

Bore water supply
Stock watering systems
Tank filling
Trough systems
Remote farm water supply
Off-grid water pumping
Solar bore pump installations
Rural and agricultural water transfer

Key Features

Solar-powered submersible pump system
Suitable for remote and off-grid water supply
Commonly used for bores, wells, tanks, troughs and stock water
Available in multiple solar array sizes
Discharge pressure capability up to 150m depending on model and site conditions
Brushless DC submersible motor
Solar motor controller with MPPT power tracking
Variable speed control for flow adjustment
Can be automated with a float switch, pressure kit or electronic pressure control
Suitable for tough rural and agricultural applications

Flow & Head Guide

Approximate average daily output guide. Figures are shown in kilolitres per day, based on good solar conditions and system setup. Actual performance will depend on sunlight, location, bore yield, pipe size, pipe length, head height, elevation, fittings and installation conditions.

Total Head	200W	400W	600W	800W	1200W	1600W	1800W	2400W
20m	18 kL/day	45 kL/day	62 kL/day	81 kL/day	102 kL/day	109 kL/day	111 kL/day	112 kL/day
40m	9 kL/day	22 kL/day	35 kL/day	46 kL/day	68 kL/day	88 kL/day	94 kL/day	102 kL/day
60m	6 kL/day	13 kL/day	23 kL/day	30 kL/day	45 kL/day	59 kL/day	63 kL/day	68 kL/day
80m	—	10 kL/day	17 kL/day	22 kL/day	34 kL/day	41 kL/day	42 kL/day	45 kL/day
100m	—	7 kL/day	11 kL/day	16 kL/day	22 kL/day	24 kL/day	27 kL/day	27 kL/day
120m	—	5 kL/day	9 kL/day	10 kL/day	19 kL/day	22 kL/day	24 kL/day	25 kL/day
150m	—	—	4 kL/day	7 kL/day	10 kL/day	13 kL/day	18 kL/day	20 kL/day

Choosing the Right Mono Sun-Sub System

A smaller system may be suitable for lower-flow trough lines, smaller stock water systems and shorter pumping distances.

A larger system may be required for deeper bores, longer pipe runs, higher head pressure, larger tanks, higher daily water demand or multiple troughs.

When selecting a Mono Sun-Sub system, always consider:

Bore depth
Standing water level
Pumping water level
Required daily water volume
Pipe size
Pipe length
Elevation
Number of troughs or tanks
Bore yield
Solar exposure
Required pressure at the outlet

Important Sizing Note

The correct Mono Sun-Sub model should be matched to the site. Flow rates can change significantly depending on total dynamic head, pipe friction loss, elevation, bore yield, sunlight and system design.

Disclaimer

Flow rates shown are manufacturer-published guide figures based on controlled testing and good solar conditions. Actual flow rates may vary depending on sunlight, location, bore depth, water level, pipe size, pipe length, elevation, fittings, valves, bore yield, system design and installation conditions.

Flow rates are provided as a guide only and should not be relied upon as guaranteed performance. For best results, contact The Pump Shed Australia with your bore depth, distance, height lift and required daily water volume so the correct Mono Sun-Sub system can be selected.
