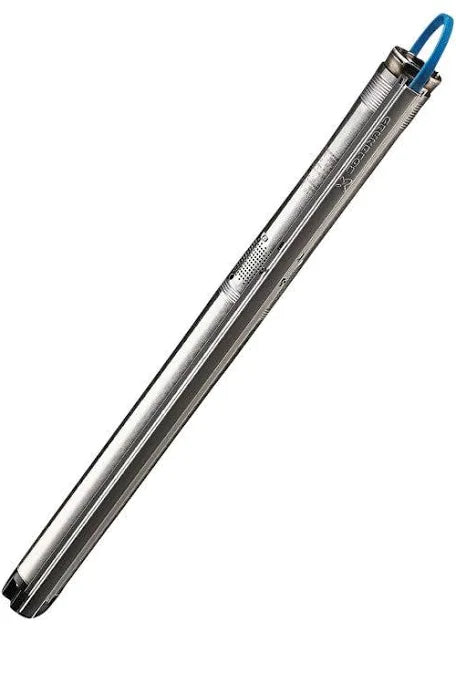

Grundfos SQ 3-65 Bore Pump

Grundfos SQ 3-65 Bore Pump

The Grundfos SQ 3-65 is one of the most popular pumps in the SQ range, offering an excellent combination of flow and pressure for domestic water supply, stock watering, tank filling and rural water systems. Built from high-quality stainless steel and packed with integrated protection features, the SQ 3-65 is designed for reliable operation in demanding Australian conditions.

Designed to fit bores as small as 76mm, the SQ 3-65 operates on standard 240V single-phase power and includes built-in dry-run protection, soft start technology and motor protection, eliminating the need for an external control box.

Key Features

✔ 3" Bore Pump Design

✔ Single Phase 240V Operation

✔ Dry-Run Protection

✔ Soft Start Technology

✔ Under & Over Voltage Protection

✔ Overload Protection

✔ Built-In Non-Return Valve

✔ Stainless Steel Construction

✔ No External Control Box Required

Performance

Specification	Value
Rated Flow	50 L/min
Maximum Flow	Up to 75 L/min
Rated Head	65m
Maximum Head	Up to 89m
Motor Size	1.15kW
Bore Size Required	76mm Minimum
Outlet Size	1¼" BSP

What Will It Run?

30–50 L/min

• Average family home
• 1–2 bathrooms
• Tank filling
• Stock troughs

50–70 L/min

• Large family home
• Multiple trough systems
• Tank storage systems
• Small irrigation systems

70–75 L/min

• Rural homes
• Lifestyle properties
• Livestock watering systems
• Multiple tanks and long pipe runs

Ideal Applications

✔ Domestic Bore Water Supply

✔ Tank Filling

✔ Stock Water Systems

✔ Livestock Watering

✔ Rural Homes

✔ Lifestyle Properties

✔ Small Irrigation Systems

✔ Water Transfer Applications

Why Choose a SQ 3-65?

The SQ 3-65 is often considered the go-to pump for rural properties because it provides enough flow for a family home while still offering excellent pressure for elevated tanks, long pipelines and stock watering systems. It's a great balance between the smaller SQ 2-55 and the larger SQ 5-70.

Need Help Choosing?

Not sure if the SQ 3-65 is right for your bore? Contact The Pump Shed Australia with:

• Bore depth
• Static water level
• Pumping water level
• Required flow rate
• Pipe size
• Distance and elevation

We'll help size the right pump for your application.

Product Specifications Link
